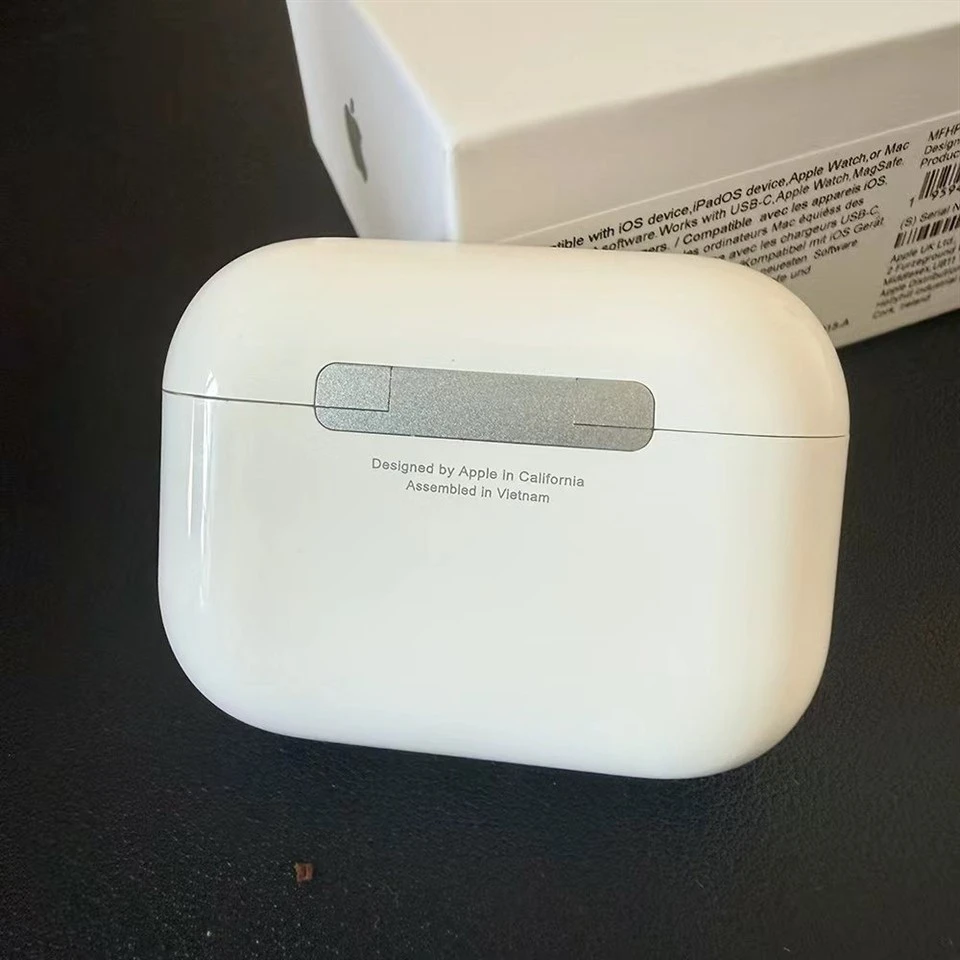

Bluetooth-Chip Apple-Compatible TWS Earbuds

Product Designation: True Wireless Stereo (TWS) Earbuds with iOS-Optimized Connectivity Protocol

Manufacturing Model: OEM / ODM / White-label contract manufacturing.

Core Positioning: Designed for brand owners, regional distributors, and electronic hardware importers seeking a stable, cost-optimized alternative to tier-one retail audio products without compromising on iOS ecosystem integration or regulatory compliance.

Regulatory & Intellectual Property Safeguard: Built using open-standard BLE (Bluetooth Low Energy) protocol stacks and authorized chipset firmware architectures. Designed to achieve seamless pop-up pairing and low-latency performance on Apple devices while strictly avoiding proprietary hardware patent infringement or trademark violations.





Technical Parameter	Specification Value / Standard
Bluetooth Chipset	Airoha / Bluetrum / Jieli (Configurable per client performance tier)
Bluetooth Version	Bluetooth 5.3 / 5.4 Dual-Mode, Low Energy
Supported Protocols	HFP 1.7, HSP 1.2, A2DP 1.3, AVRCP 1.6, BLE
Effective Range	>= 10 meters (Obstacle-free open space; tested with standard smartphone host device)
RF Output Power / Sensitivity	Class 2 power level; RF receiving sensitivity: -90dBm at 1Mbps
Driver Unit	13mm Dynamic Composite Diaphragm (PU + Peek)
Frequency Response	20Hz - 20kHz
Impedance	32 ohms +/- 15% at 1kHz
Microphone Type	MEMS Microphone with ENC (Environmental Noise Cancellation) algorithm
Battery Capacity (Earbuds)	30mAh - 35mAh (Per single earbud)
Battery Capacity (Charging Case)	300mAh - 400mAh with Hardware Protection IC
Playback Time	4.5 - 5.5 hours (at 50% volume per charge)
Total Playtime (with Case)	20 - 24 hours
Charging Interface	USB Type-C (Optional: Qi Wireless Charging Receiver coil)
Charging Time	approx. 1.5 hours (Charging Case) / approx. 1 hour (Earbuds)
IP Rating	IPX4 Water-Resistance (Sweat and splash-proof per IEC 60529 standard)





IOS Ecosystem Integration: Utilizes customized firmware to support instant proximity pairing animation and battery status synchronization on Apple iOS devices without triggering protocol handshake errors.

Dual-Master Transmission: Both left and right earbuds connect directly to the host device simultaneously via dual-channel transmission, eliminating single master-slave routing delay and audio dropouts during high-bitrate streaming.

ENC Dual-Mic Architecture: Hardware-level Environmental Noise Cancellation filters background ambient noise up to -25dB during voice calls, ensuring clear vocal transmission in outdoor or vehicular environments.

Capacitive Touch Controls: Supports precise multi-tap gesture assignments for music playback, call management, and voice assistant activation (Siri integration).







Cell Chemistry: High-density Lithium-ion polymer secondary cells sourced from tier-2/tier-3 audited manufacturers (e.g., VDL, EVE equivalent supply chains).

Safety Standards: Cells certified with UN38.3, MSDS, IEC 62133-2 compliance reports for air and ocean freight safety.

Cycle Life Retention: Retains >= 80% of initial nominal capacity after 500 standard charge-discharge cycles at 25 degrees Celsius under constant current/constant voltage (CC/CV) testing.

Charging Case Architecture: Features a magnetic hall-effect switch for auto-power-on/off upon lid opening, paired with an LED capacity indicator displaying 4-stage state of charge (25%, 50%, 75%, 100%).





Firmware Customization: Modification of Bluetooth pairing names (BT Broadcast Name), custom boot/pairing audio tones, and touch-sensor gesture mapping.

Acoustic Tuning: Alternative sound signatures available via DSP (Digital Signal Processing) parameter adjustment (e.g., bass boost, vocal enhancement) based on target regional acoustic preferences.

Visual Branding: Laser engraving or silk-screening on charging case and earbud shells; custom Pantone color matching for injection-molded ABS/PC plastic housing (MOQ applies: 3,000pcs per color).

Packaging Customization: Full-color rigid gift boxes, soy-based ink printing, FSC-certified paper materials, and custom manual insertions per retailer specifications.





Production Infrastructure: 6 automated SMT surface-mount lines, 4 dust-free acoustic assembly lines, and 2 dedicated aging test workshops.

Quality Inspection Process:

• IQC (Incoming Quality Control): 100% inspection of bare chips, battery cells, and speaker drivers before warehouse entry.
• IPQC (In-Process Quality Control): On-line RF frequency deviation testing, audio sweep distortion testing (THD < 1%), and manual weld-strength verification.
• FQC (Final Quality Control): 4-hour high-temperature and room-temperature aging test under active load, followed by 100% functional grading.
• OQC (Outgoing Quality Control): AQL 1.0 (Critical: 0, Major: 0.65, Minor: 1.0) random sampling prior to carton sealing.
• Reliability Testing Laboratory: Facilities equipped for drop tests (1.2m concrete floor), sweat corrosion simulation (salt spray testing machine), hinge endurance mechanical test (>= 5,000 cycles), and plug insertion force verification.





Standard Export Packaging:

• Unit Package: Recyclable retail box with EVA protective tray.
• Master Carton: 5-layer corrugated export-grade master carton.
• Carton Quantity: 100 units / master carton.
• Carton Dimensions: Approx. 45 x 38 x 32 cm.
• Gross Weight: Approx. 12.5 kg / carton.

Supply Chain Resilience & Lead Times:

• Standard Sample Lead Time: 3 – 5 working days (Stock components).
• Mass Production Lead Time: 20 – 25 working days upon deposit receipt and artwork confirmation.

Chipset Buffer Stock: Maintained minimum 4-week rolling inventory of core Bluetooth ICs to insulate against upstream semiconductor supply volatility.

Shipping Compliance: Fully documented for global logistics, including UN38.3 transport certification, MSDS for lithium batteries, Commercial Invoice, Packing List, and Certificate of Origin (CO / Form E).









To receive an exact FOB/CIF quotation, customized BOM breakdown, or request evaluation samples, please provide the following details to our engineering sales team:

• Target Order Quantity (Units)
• Customization Scope (Neutral pack vs. OEM brand packaging)
• Target Destination Port / Country (For freight calculation)
• Preferred Chipset Tier / Audio Profile
